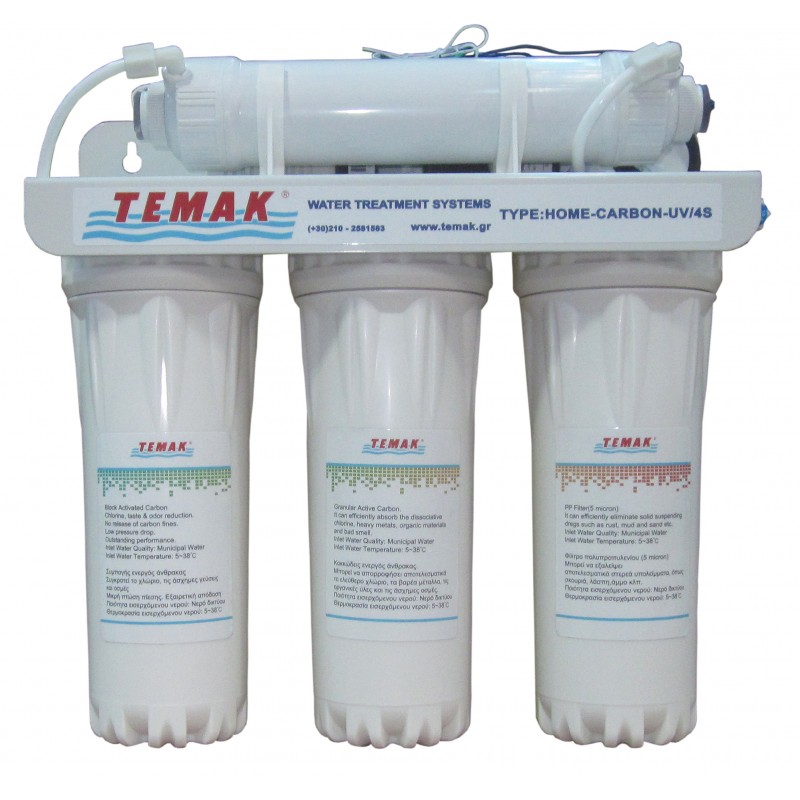

UV FILTER SYSTEM HOME-CARBON/4S

Filtration and Disinfection System Drinking Water in 4 Stages is ideal for production 150 lt/h

Application

• Water filtration of solids (large particles, rust, etc) and removal of chlorine, smell, color, organics
• Water disinfection from microorganisms and bacteria

System Main Parts

• Polypropylene cartridge filter 10’’ 5µm
• Active carbon cartridge filters 10’’
• UV disinfection unit
• Flow switch
• Tap
• Connection parts
• Spanner for filters

Installation

Simple and fast, can be done by the client or a plumber, following the delivered instructions

Operation

The system operates without supervision and does not require technical knowledge by the user

Operation and Installation Requirements

• Inlet piping ½’’ threaded
• Maximum operating pressure 5 bar
• Electric plug 220 Volt

Consumables

• Cartridges, every 4 months
• UV lamp, once a year

Consumables can be replaced by the client, following the delivered instructions

Service

TEMAK supports fully the water treatment system which can be serviced by experienced service technicians or through your local agent.
