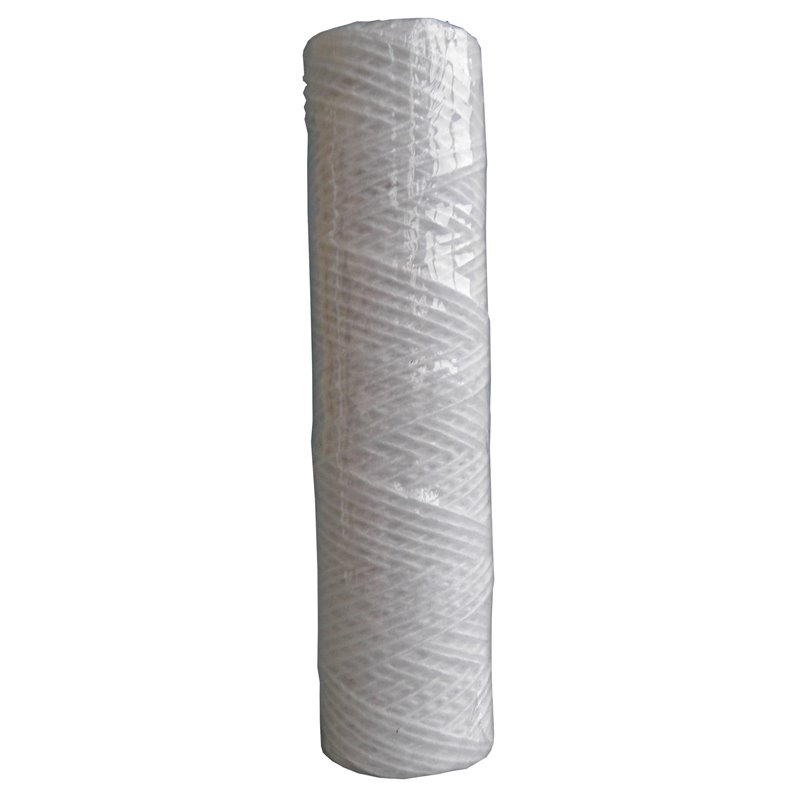

WOUNDED POLYPROPYLENE FILTER 10",10 MICRON

General Description

Our string wound filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility.  The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.

Features

• Fits all the standard housings
• Low pressure drop, high dirt holding capacity and long service life
• Loose outer layers and tight inner layers offers effective depth filtration
• Various filter media fit with various applications

Dimensions

Outside diameter : 63mm 115mm

Inner diameter    : 28mm, 30mm

Length : 9.75’’, 9.87’’, 10’’, 20’’, 30’’, 40’’

Material Of Constructions

Filter media : Polypropylene, Bleached cotton, Glass Fiber

Core           : PP, Stainless Steel

Performance

• Removal rating : 1μm, 5μm, 10μm, 20μm, 30μm, 50μm, 75μm, 100μm,
• Polypropylene material for non-organic solvent, maximum recommended operating temperature =<60oC
• Bleached cotton material filter cartridge for domestic and industrial use as in organic solvent, water oil, alkalinity solvent, beverage, pharmaceuticals, maximum recommended operating temperature: 120oC
