Sea Water Reverse Osmosis System producing 500 m3/day.

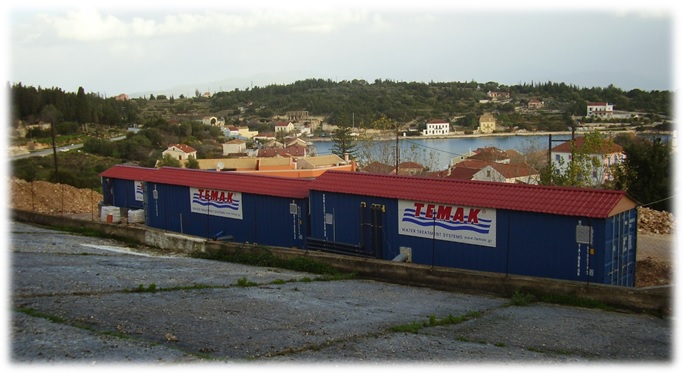

Case Study 001-M-G
Containerized Systems Municipalities - Communities Pure Drinking Water Reverse Osmosis Sea Water


Sea Water Reverse Osmosis System producing 500 m3/day



Case Study 001-M-G

LOCATION

Greece

PRODUCT

Pure Drinking Water

MARKET SECTOR

Municipalities – Communities

REFERENCE ID

001-M-En

TECHNICAL CHARACTERISTICS

  • Feed Water Supply to the pretreatment stage from two boreholes 45m depth each with two feed pumps which are set to 54 m3/hr (pumps’ control through INVERTER)
  • 3 Turbidity filters – 3 Active Carbon filters/ Rehardening filters( open type filters with overflow)(/ CIP – Flushing6 Parallel Pressure Vessels (6 Membranes per Vessel)
  • High pressure pump (with Energy Recovery System Pelton)(pump’s control through INVERTER)
  • Drinking water production of 22 m3/hr
  • System control through PLC, System Monitoring & Data Transfer through Internet
