Brackish Water Reverse Osmosis System producing 1.200 m3/day
Municipality of Τhira, Cyclades
PROJECT DESCRIPTION

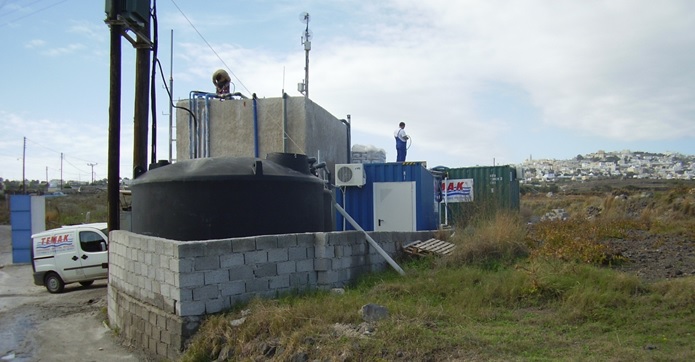

Drinking water plant installed in 2 (two) Containers for Thira Municipality
LOCATION
Τhira, Cyclades
PRODUCT
Pure Drinking Water
MARKET SECTOR
Municipalities – Communities
REFERENCE ID
050-M-Εn
TECHNICAL CHARACTERISTICS
-
Water Collection from the wells in 2 tanks of 25 m3 each
-
Feed pumps, 64,25 m3/hr, 4.5 bar
-
2 turbidity filters
-
Rehardening filter / Cleaning in Place, TCIP2 (Container 20 ft)
-
High Pressure Pump 64,25 m3/hr, 4.5 bar
-
1st stage: 6 Pressure vessels in parallel
(6 Membranes per Pressure vessel) -
2nd stage: 3 Pressure vessels in parallel
(6 Membranes per Pressure vessel) -
Booster Pump 27 m3/hr, 6 bar, between 2 stages
-
Drinking water production of 51,4 m3/hr, and Water Collection in the existing tank of the Municipality
-
System control through PLC, System Monitoring & Data transfer through Internet, Alarm to telephone operator
