Power Plant Seawater Reverse Osmosis Plant for the production of 960 m3/day

references-top-banner-placeholder
Boiler Water Brackish Water Power Plants Reverse Osmosis Ultra Pure Water System Water for Power Plants

Power Plant

Seawater Reverse Osmosis Plant for the production of 960 m3/day

Greece

LOCATION

Greece

PRODUCT

Boiler Water, Water for Power Plants

MARKET SECTOR

Power Plants

REFERENCE ID

046-P-Εn

TECHNICAL CHARACTERISTICS

  • Lowara Feed Water Pumps 2 x 100 m³/ hr @ 4 bar

  • 4 Turbidity Filters ΤΕΜΑΚ, TFA2500

  • 3 Active Carbon Filters ΤΕΜΑΚ TAC2500

  • 4 Cartridge Filters 15×40”, 1μm

  • Cleaning in Place System TWASHI 2000, TCIP4

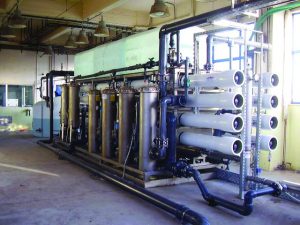

  • Reverse Osmosis System with 64 membranes, (TSW 364)

  • Grundfos High Pressure Pump ΒΜΕ/ 132 kW (including Energy Recovery System ERI PX-260 and booster pump)

  • Product water quality 200 μS/cm and product water quantity 42 m3/hr.

  • Permanent CIP installation. Flush procedure with elevated tanks so that water can flow through gravity in case of electricity outage

  • System Control through PLC Simatic S7300 Siemens. There is also the capability of System Control & Data Transfer through Internet

GENERAL CHARACTERISTICS

Water used for steam generation in power plants (combined cycle plant etc.) requires strict quality standards for purified or deionized water.

TEMAK has carried out numerous water treatment projects producing purified and deionized water in the industry sector as well as in power plants in Greece and abroad. Moreover, TEMAK has significant experience in contemporary technologies used as treatment stages in the production of deionized water, such as ultra-filtration of pre treatment water through ultra-filtration membranes, CEDI (polishing stage) or degassing membranes (stage of removing CO2 from water before it enters CEDI).
