Power Plant – Mobile Reverse Osmosis Plant for the production of 1.200 m3/day

references-top-banner-placeholder
Boiler Water Brackish Water Power Plants Reverse Osmosis Ultra Pure Water System Water for Power Plants

Power Plant – Mobile Reverse Osmosis Plant for the production of 1.200 m3/day

Greece

PROJECT DESCRIPTION

– Production of 1200 m3/day of water for high pressure boilers in power plants

– Supply of brackish water from wells or softened water for cooling towers

LOCATION

Greece

PRODUCT

Boiler Water, Water for Power Plants

MARKET SECTOR

Power Plants

REFERENCE ID

048-P-Εn

TECHNICAL CHARACTERISTICS

  • Feed water tank

  • Dosing systems for prechlorination, sulphuric acid, coagulant

  • Two feed water pumps (one stand by)

  • Ultra Filtration (UF)

  • UF product water tank

  • Antiscalant dosing

  • NaHSO3 Dosing

  • 1st pass Reverse Osmosis System TBW354

  • Cleaning In Place System for 1st pass Reverse Osmosis System

  • 1st pass Product Water Tank

  • 2nd pass Reverse Osmosis System TBW342

  • Degassing with membranes

  • Electro-deionization system

  • CIP for UF, membranes, electrodeionization

  • Product Water Tank

  • Product water pumps that transfer product water to the central tank of the station

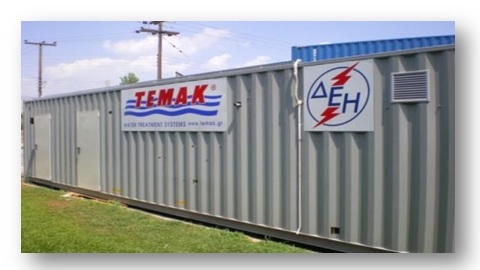

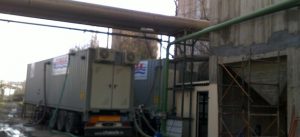

  • The system is installed in two 40ft high cube containers, placed on two truck trailers

GENERAL CHARACTERISTICS

Water used for steam generation in power plants (combined cycle plant etc.) requires strict quality standards for purified or deionized water.

TEMAK has carried out numerous water treatment projects producing purified and deionized water in the industry sector as well as in power plants in Greece and abroad. Moreover, TEMAK has significant experience in contemporary technologies used as treatment stages in the production of deionized water, such as ultra-filtration of pre treatment water through ultra-filtration membranes, CEDI (polishing stage) or degassing membranes (stage of removing CO2 from water before it enters CEDI).
